Description
Features simple, smart and precise. It could work with nearly any kind of bed materials, such as glasses, woods, metals and so on.
Spare parts – for just in case something happens
1 X 10KΩ Resistor for Smoothieboard
1 X 240Ω Resistor for 3.3V Logic Level? ← added JULY 1
1 X 3Pin Straight Pin
1 X 2Pin Straight Pin
2 X Screw & Nut & Washer
2 X Dupont Housing Shell 3Pin
2 X Dupont Housing Shell 2Pin
10X Dupont Terminal

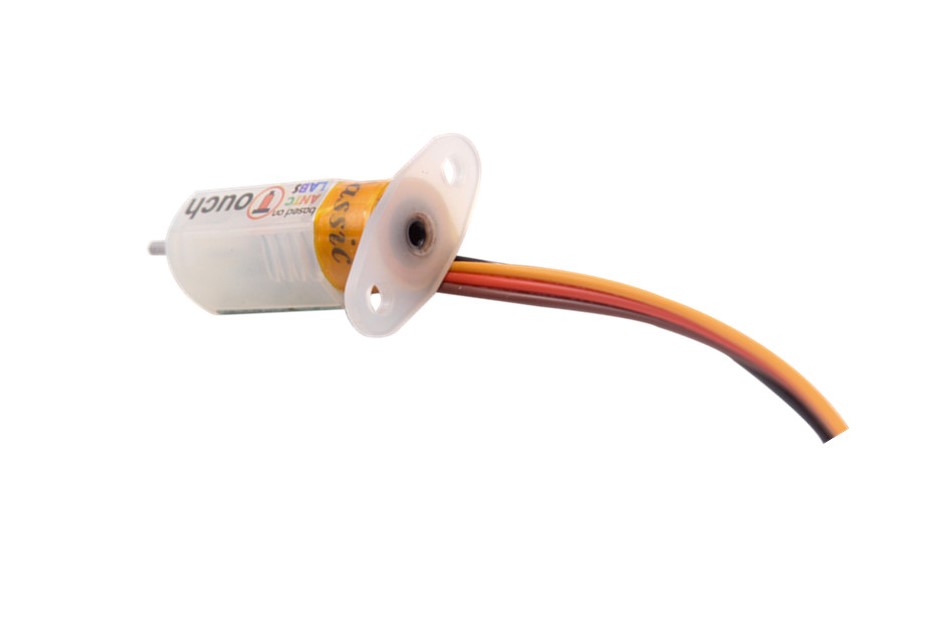

The main functions and controls of 3D printer touch are the same as most auto bed leveling sensors, which consists of a RC servo and a micro switch, thus, 3D printer touch can be used on almost every 3D printer control board.
By using progressively designed solenoid and hall sensor, It can integrate high precision in such a simple structure. To make it more user-friendly and to bring you more enjoyable printing experience we add many smart functions such as self-test, false alarm, alarm release and test mode for M119.
Pulling/pushing hard on the push-pin can damage Touch sensorand make it less accurate.
Fix push-pin with locking paint after reassembling or adjusting core.
Do not remove or deform elastic material attached on the push-pin.
Manual:www.antclabs.com/wiring1
www.thingiverse.com/thing:1965112
